UVio provides UV measurement equipment from EIT to help you monitor UV output for specific wavelengths during the curing process.

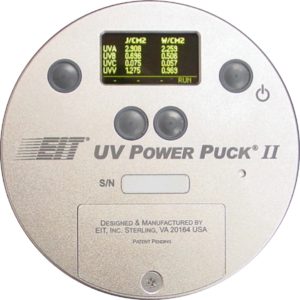

UVICURE PLUS II & UV POWER PUCK II
This measures and compares UV curing performance from difference systems. The Power Puck II® simultaneously provides information for all four bands (UVA, UVB, UVC, and UVV) while the UVICURE Plus™provides for any one band. With an easy-to-read display and multiple user-selected modes, these radiometers are suited to a variety of fast or slow moving conveyor lines. For more information click here
UV POWERMAP and UV MAP PLUS
For measuring UV irradiance, radiant energy density and temperature. The UV PowerMAP® simultaneously provides information for all four bands (UVA, UVB, UVC, and UVV) while the UV MAP Plus™ provides for any one band. Both instruments can collect up to 1 million data points and, using the PowerView™ software, can provide a graphical plot of the UV irradiance and temperature as a function of time. For more information click here.

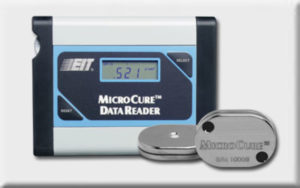

This comprises a miniature UV radiometer and reader. The radiometer can be placed in a difficult-to-access environment such as small part curing or web printing. It features a high sample rate of 2000 samples per second and is well-suited to high-temperature environments. For more information click here.
This is a low profile measurement system featuring up to 32 sensors, a Data Collection Module (DCM) and software to process data from each sensor. Each sensor has daisy-chain connectors that can be easily fixed and moved around. For more information click here.
This is a portable handheld device that measures and displays the output of a UV spot curing system. It can provide immediate feedback on the performance of UV lamps and light guides and can monitor intensities of up to 19.99W/cm2 (Standard Range Version) and 99.9W/cm2 (Extended Range Version). For more information click here.
